Spacer Constructor Set – Starter edition

$125.00

This is a Six-Point Spacer with enough parts to upgrade it to an Eight-Point Spacer.



The packaging is mainly for postage, but isn’t unserviceable in its own right. It comes with the files used to create it… so if you decide to make your own, you can.



If 8 is not enough (or 6 too many), let me know and I’ll sort something out. The parts are available separately – If you need something different case-wise, let me know and I will design something.

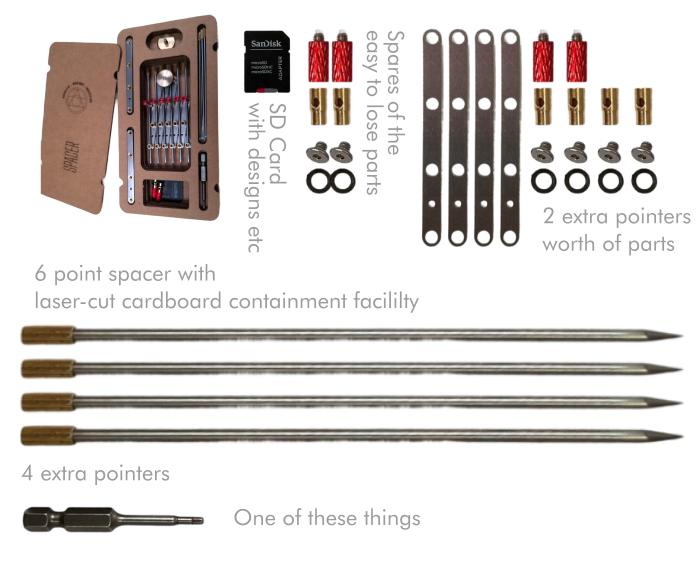

what's in the box

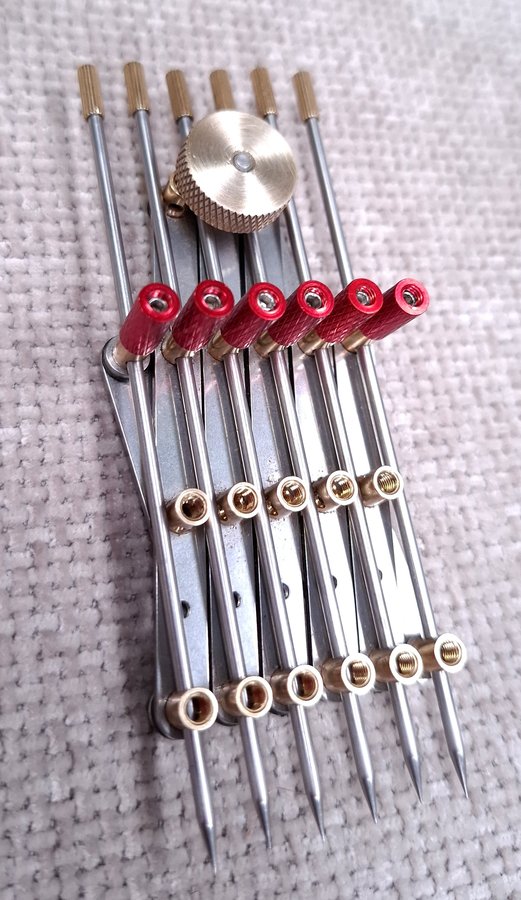

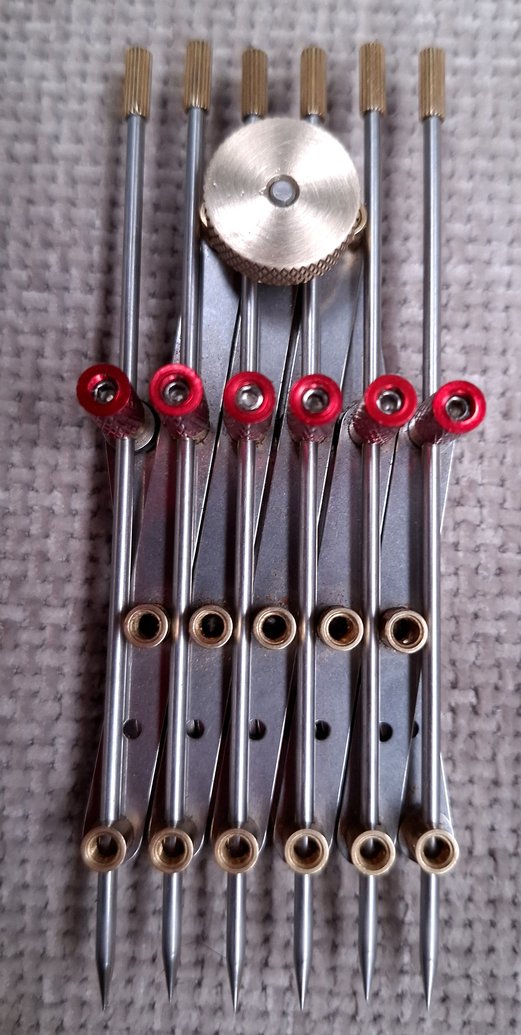

  • One assembled and checked 6-String Spacer
  • Two extra pointers worth of parts- bolts, arms, pointers, washers, brass connectors, and red things
  • Laser-cut cardboard packaging for a set
  • One spare brass wheel
  • One micro-sd card with adaptor, containing digital files.
  • One 2mm hex screwdriver bit

specifications


All of these parts are standard parts available from the industrial supply-chain if you lose anything, and if this shop is offline
Custom parts come with the digital files required to make them.



Unique to this kit

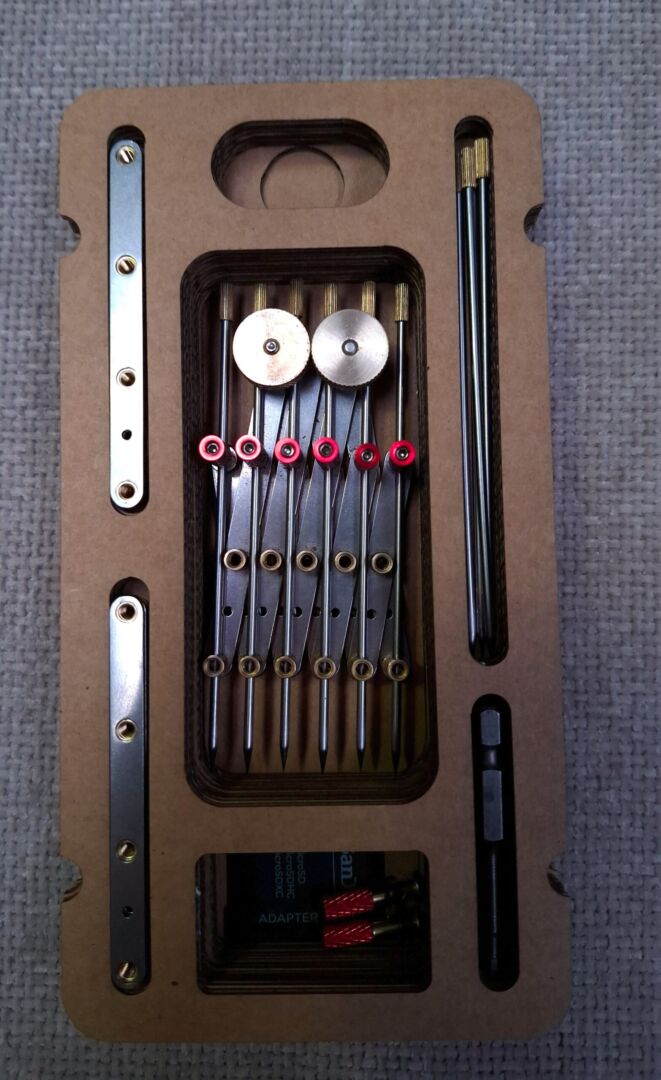

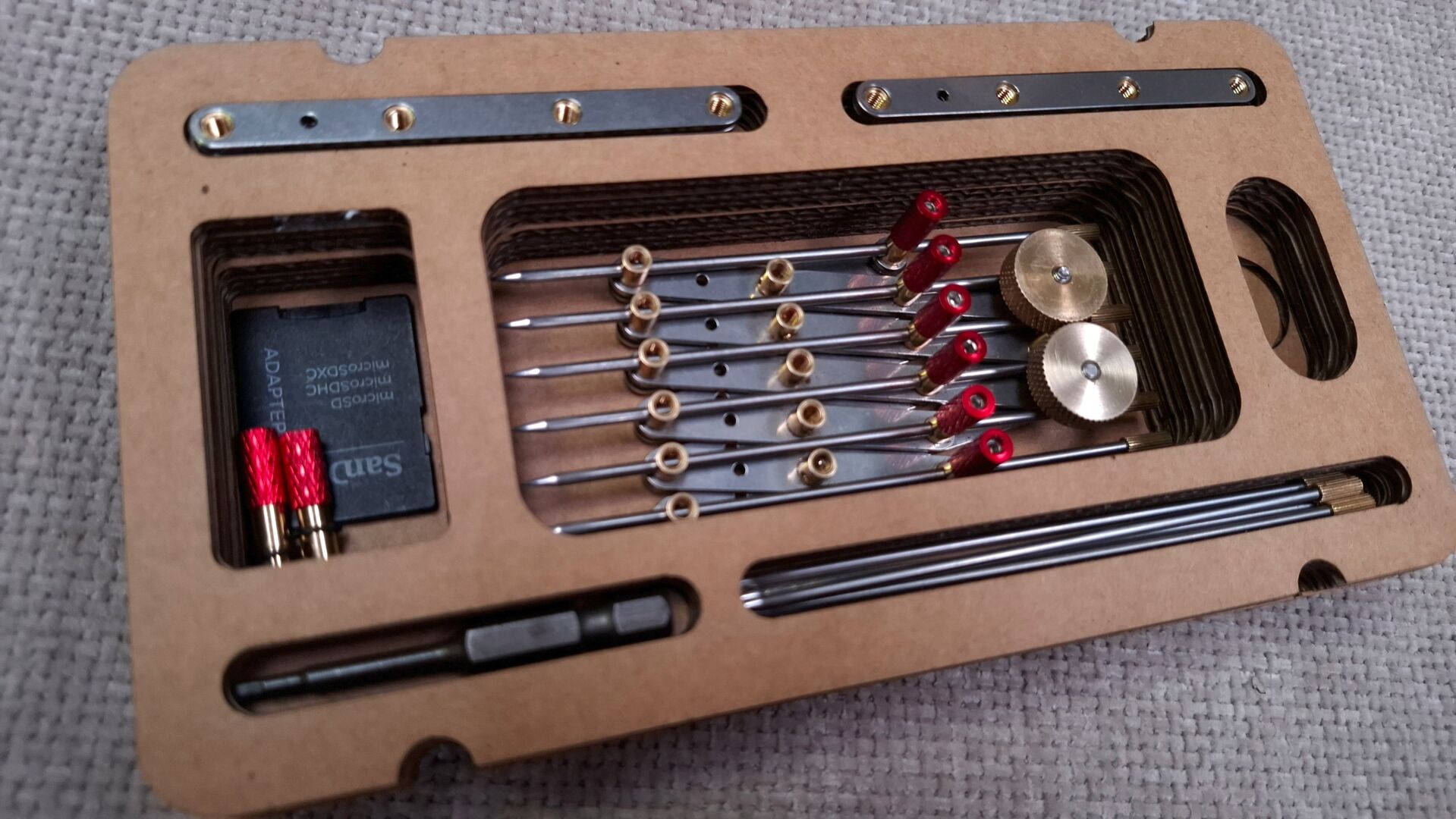

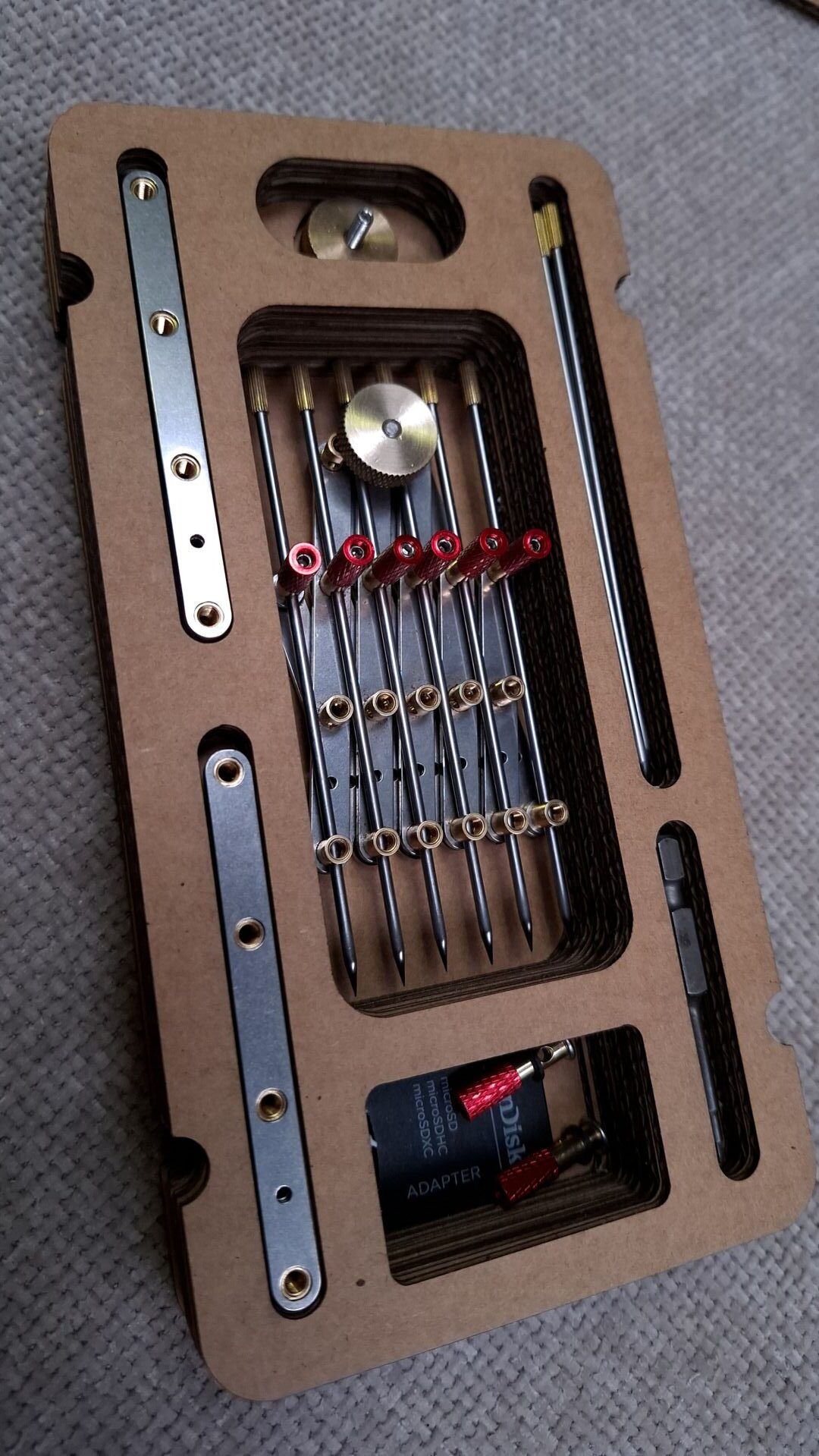

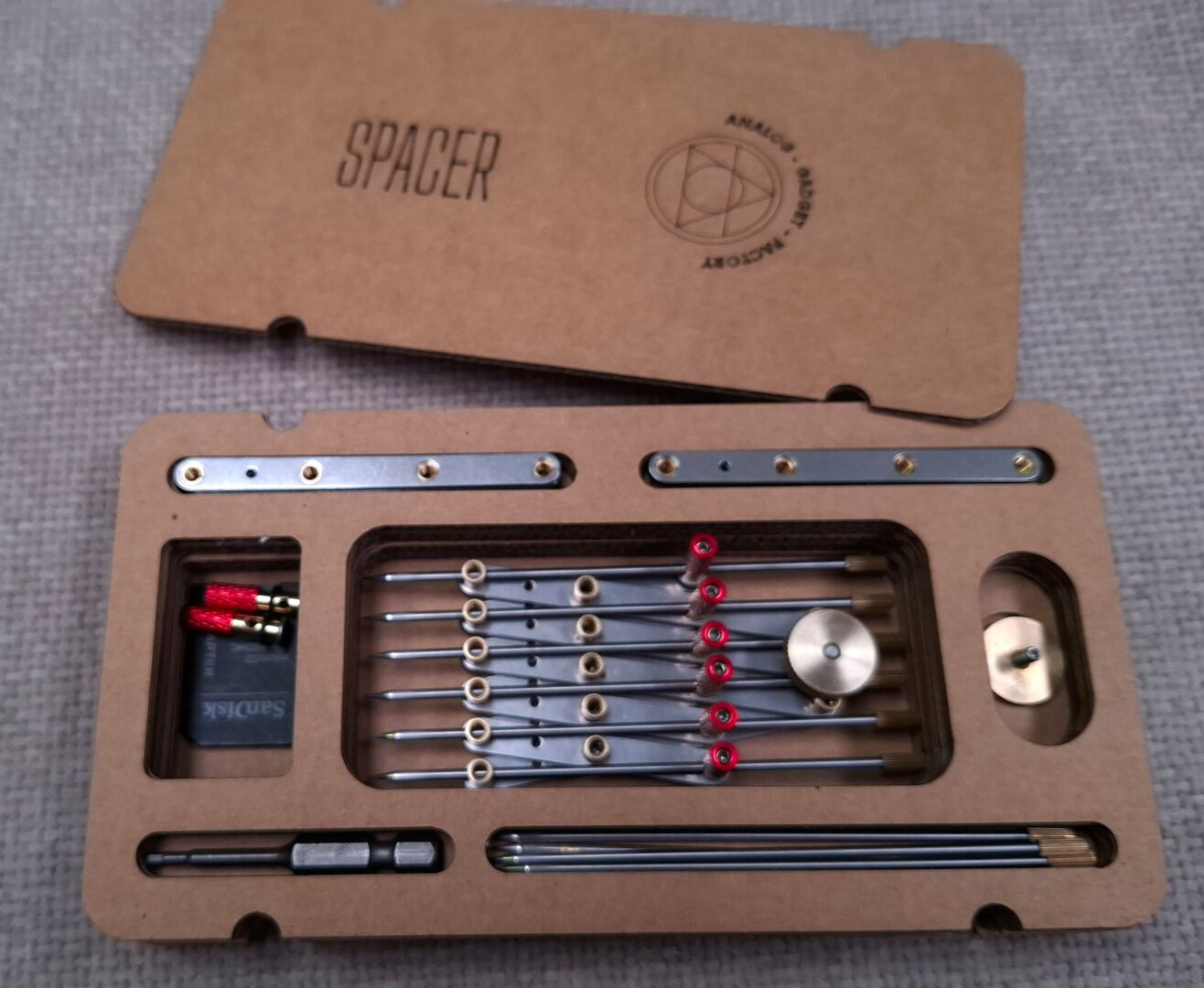

  • Laser-cut cardboard enclosure
  • An H2 Screwdriver bit for tinkering
  • With extra points attached : 48mm (1.89″) to 320mm (12.60″)



Every Spacer kit includes

  • The six Point unit measures from 36mm (1.42") to 240mm (9.45") - segment length 6mm (0.24") to 40mm (1.57")
  • Pointers  - hardened carbon-steel, 2mm diameter, 100mm long. M2 thread at one end, with knurled brass nut.
  • Red Aluminium Aluminium knurled spacers with 12mm M3 Nylon-tipped set-screws loctited in place
  • Arms : 1,5mm thick laser-cut 304 Stainless Steel, rock-tumbled to satin finish
  • Magic Brass Connectors
  • Stainless Steel 3mm M3 slim-head allen-key nuts
  • 3D Printed Nylon Washers
  • Brass Knurled Wheels that do not as yet serve any purpose but which look cool
  • Assembled 6-pointer Spacer, with enough parts for 8 points
  • 8Gb SD Card with STLs and DXFs for the non-standard parts.
