Spacer Constructor Set
Spacer Constructor Set - Image 2
Spacer Constructor Set - Image 3
Spacer Constructor Set - Image 4
Spacer Constructor Set - Image 5
Spacer Constructor Set - Image 6
Spacer Constructor Set - Image 7
Spacer Constructor Set - Image 8
Spacer Constructor Set - Image 9

Spacer Constructor Set

Original price was: $259.00.Current price is: $185.00.

Early-bird discount for the first production run.



This is a Six-Point Spacer with enough parts to upgrade it to an Eight-Point Spacer.

If 8 is not enough (or 6 too many), let me know and I’ll sort something out.



In comes with a gorgeous Paleo-Rocketpunk case, hand-made by Nick Taylor himself. Paleo-Rocketpunk is a sub-species of 18thC Black-Forest Clockpunk.



Details below. In fact this whole site is details. Everywhere you look, more details. Details, details, details.

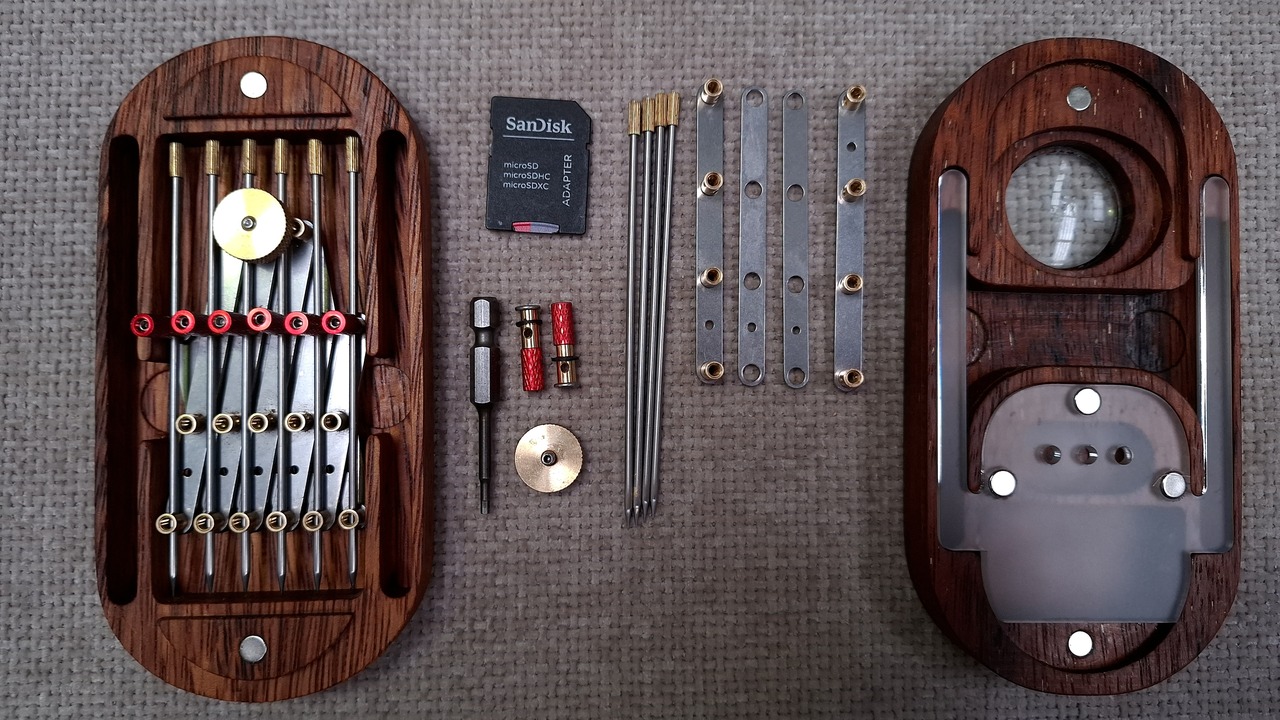

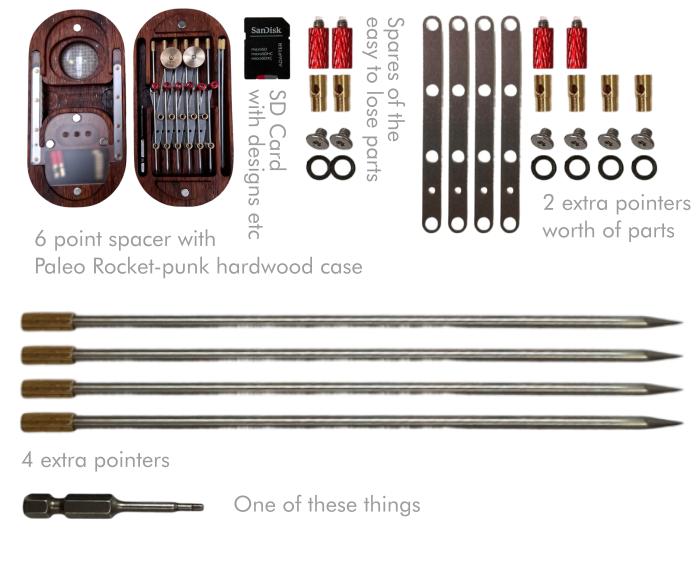

what's in the box

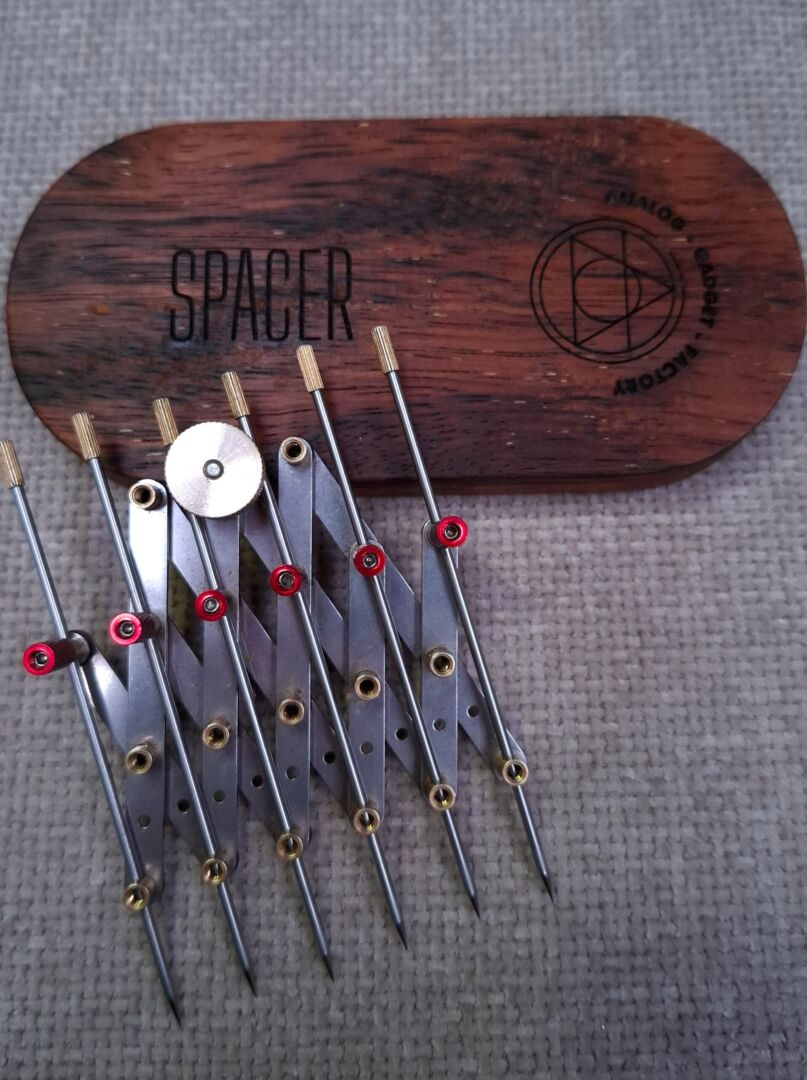

  • One assembled and checked 6-String Spacer
  • Two extra pointers worth of parts- bolts, arms, pointers, washers, connectors, and red things

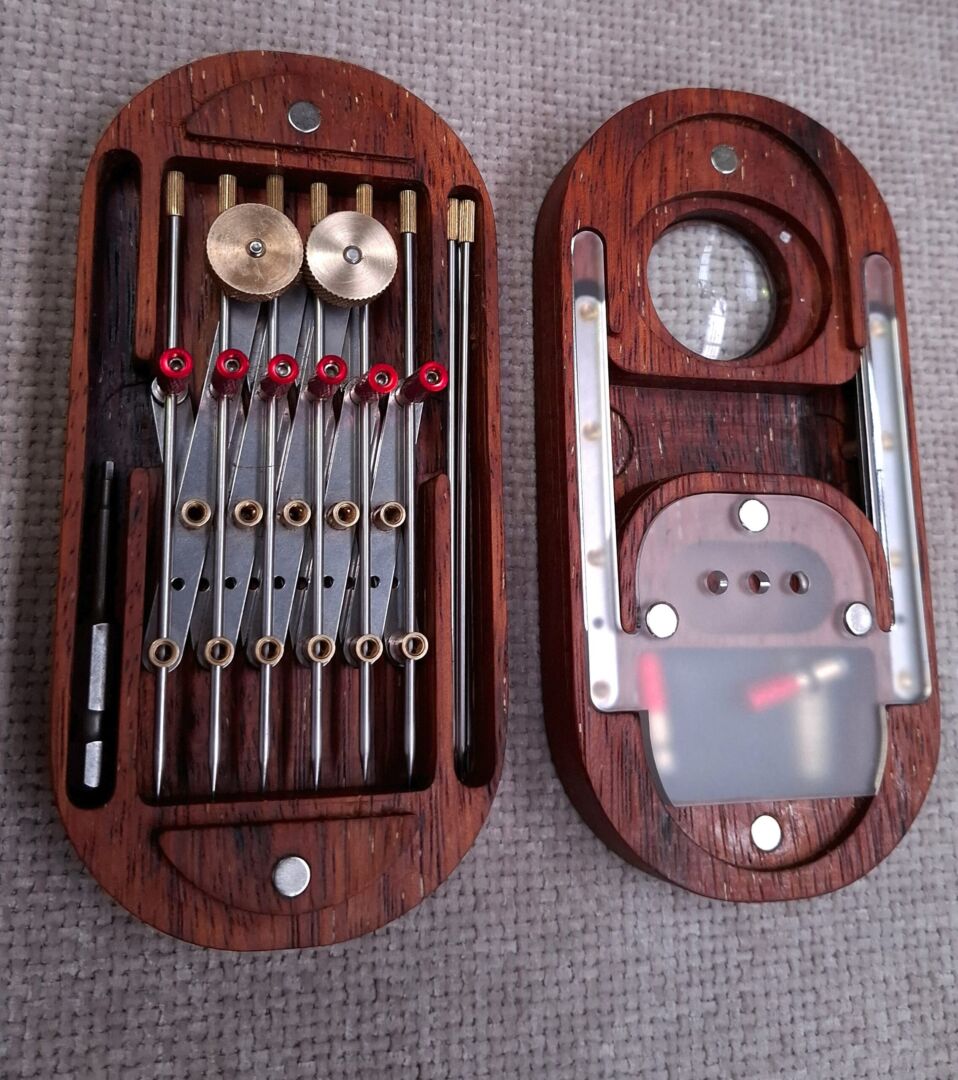

  • One Kwila Hardwood String Spacer-Case for a set
  • One spare brass wheel
  • One micro-sd card with adaptor, containing digital files.
  • One 2mm hex screwdriver bit

specifications


All of these parts are standard parts available from the industrial supply-chain if you lose anything, and if this shop is offline
Custom parts come with the digital files required to make them.



Unique to this kit

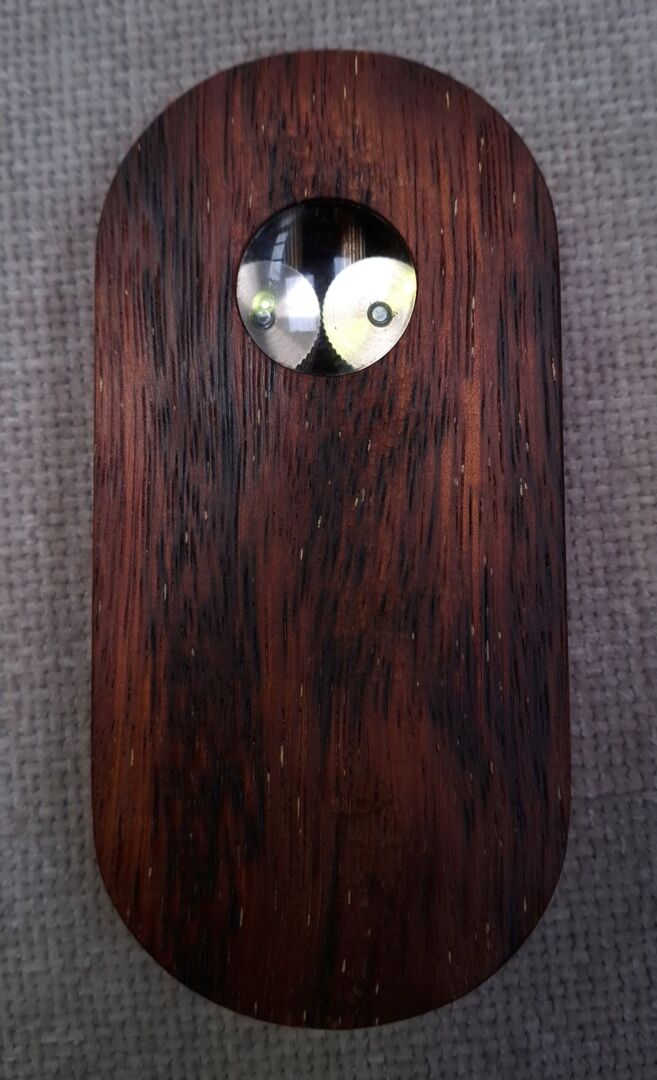

  • Kwila Hardwood Spacer Case with magnets and magnifying glasses and such, hand-made by Nick Taylor
  • With extra points attached : 48mm (1.89″) to 320mm (12.60″)
  • An H2 Screwdriver bit for tinkering



Every Spacer kit includes

  • The six Point unit measures from 36mm (1.42") to 240mm (9.45") - segment length 6mm (0.24") to 40mm (1.57")
  • Pointers  - hardened carbon-steel, 2mm diameter, 100mm long. M2 thread at one end, with knurled brass nut.
  • Red Aluminium Aluminium knurled spacers with 12mm M3 Nylon-tipped set-screws loctited in place
  • Arms : 1,5mm thick laser-cut 304 Stainless Steel, rock-tumbled to satin finish
  • Magic Brass Connectors
  • Stainless Steel 3mm M3 slim-head allen-key nuts
  • 3D Printed Nylon Washers
  • Brass Knurled Wheels that do not as yet serve any purpose but which look cool
  • Assembled 6-pointer Spacer, with enough parts for 8 points
  • 8Gb SD Card with STLs and DXFs for the non-standard parts.
